A-Justa-Foot: Heavy Duty Square Threaded Tube End
- Description
- Additional information
Description
Square Threaded Tube End
Square inserts 111 series – Steel inserts are designed to be welded in – 304 Stainless Steel

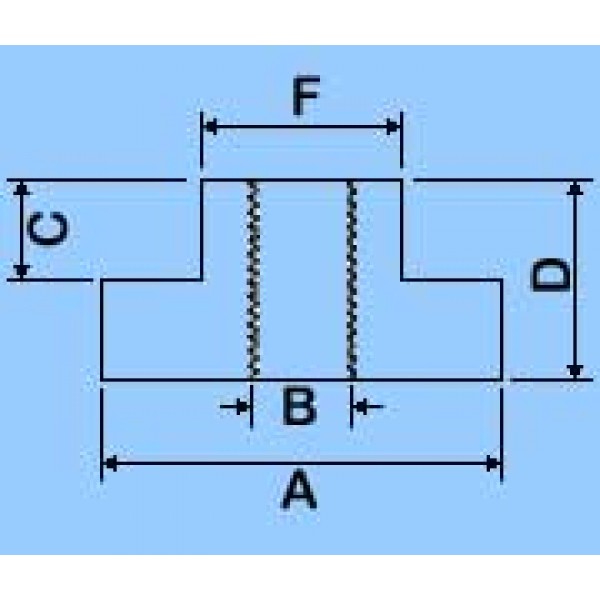

| Part No. | Size | A | B | C | D | F | Rating |
| 111/38/M12 | 38xM12 | 38×38 | M12 | 8.5 | 12.5 | 35.6 | 1200kg |
| 111/38/M16 | 38xM16 | 38×38 | M16 | 8.5 | 12.5 | 35.6 | 2000kg |
| 111/38/M20 | 38xM20 | 38×38 | M20 | 8.5 | 12.5 | 35.6 | 3500kg |
| 111/38/M24 | 38xM24 | 38×38 | M24 | 8.5 | 12.5 | 48.6 | 4500kg |
| 111/51/M12 | 51xM12 | 51×51 | M12 | 8.5 | 12.5 | 48.6 | 1200kg |
| 111/51/M16 | 51xM16 | 51×51 | M16 | 8.5 | 12.5 | 48.6 | 2000kg |
| 111/51/M20 | 51xM20 | 51×51 | M20 | 8.5 | 12.5 | 48.6 | 3500kg |
| 111/51/M24 | 51xM24 | 51×51 | M24 | 8.5 | 12.5 | 48.6 | 4500kg |
| 111/61/M16 | 61xM16 | 61×61 | M16 | 8.5 | 12.5 | 58.6 | 2000kg |
| 111/61/M20 | 61xM20 | 61×61 | M20 | 8.5 | 12.5 | 58.6 | 3500kg |
| 111/61/M24 | 61xM24 | 61×61 | M24 | 8.5 | 12.5 | 58.6 | 4500kg |
