A-Justa-Foot: Square Threaded Tube End

A-Justa-Foot: Square Threaded Tube End

SKU: A-JN13 Category:

Description

Square Threaded Tube End (Mild Steel) 10 Series

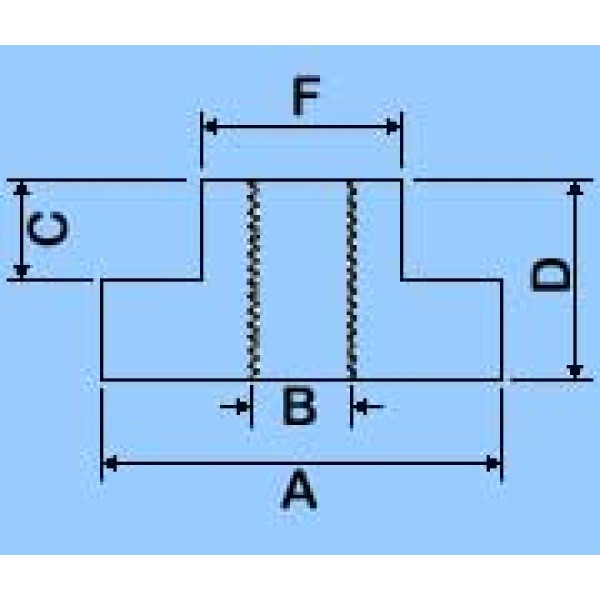

Part No.

Old Part No.

Size

A

B

C

D

E

F

G

Rating

10/19/M8

–

19xM8

19

M8

22.5

24.8

9

16

15-16

50kg

10/25/M8

1000

25xM8

25

M8

39

44

10

23.5

22-23

250kg

10/25/M10

1001

25xM10

25

M10

39

44

11

23.5

22-23

250kg

10/25/M12

1002

25xM12

25

M12

39

44

13

23.5

22-23

250kg

10/25/M16

1003

25xM16

25

M16

39

44

16.5

23.5

22-23

250kg

10/30/M8

–

30xM8

30

M8

39

45

10

26.8

26-27

350kg

10/30/M10

–

30xM10

30

M10

39

45

11

26.8

26-27

350kg

10/30/M12

–

30xM12

30

M12

39

45

13

26.8

26-27

350kg

10/30/M16

–

30xM16

30

M16

39

45

16.5

26.8

26-27

350kg

10/32/M8

1004M8

32xM8

32

M8

39

45

10

30

28-29

350kg

10/32/M10

1004

32xM10

32

M10

39

45

11

30

28-29

350kg

10/32/M12

1005

32xM12

32

M12

39

45

13

30

28-29

350kg

10/32/M16

1006

32xM16

32

M16

39

45

16.5

30

28-29

350kg

10/35/M10

–

35xM10

35

M10

39

45

11

32.2

31-32

400kg

10/35/M12

–

35xM12

35

M12

39

45

13

32.2

31-32

400kg

10/35/M16

–

35xM16

35

M16

39

45

16.5

32.2

31-32

400kg

10/38/M8

–

38xM8

38

M8

41

45

10

36

35-36

500kg

10/38/M10

1007M10

38xM10

38

M10

41

47

17.7

36

35-36

500kg

10/38/M12

1007

38xM12

38

M12

41

47

13

36

35-36

500kg

10/38/M16

1008

38xM16

38

M16

41

47

18

36

35-36

500kg

10/40/M10

–

40xM10

40

M10

39

45

11

36.8

36-37

500kg

10/40/M12

–

40xM12

40

M12

39

45

13

36.8

36-37

500kg

10/40/M16

–

40xM16

40

M16

39

45

16.5

36.8

36-37

500kg

10/51/M10

1009M10

51xM10

51

M10

39

45

11

48

47-48

750kg

10/51/M12

1010

51xM12

51

M12

39

45

13

48

47-48

750kg

10/51/M16

1009

51xM16

51

M16

39

45

18

48

47-48

750kg

10/32/⅜

1004⅜

32x⅜

32

⅜”

39

45

10

30

28-29

350kg

(G) is recommended ID tube sizes

Square Threaded Tube End (Stainless Steel) 11 Series

Part No.

Old Part No.

Size

A

B

C

D

E

F

G

Rating

11/25/M8

1100

25xM8

25

M8

39

44

10

23.5

22-23

250kg

11/25/M10

1101

25xM10

25

M10

39

44

11

23.5

22-23

250kg

11/25/M12

1102

25xM12

25

M12

39

44

13

23.5

22-23

250kg

11/25/M16

1103

25xM16

25

M16

39

44

16.5

23.5

22-23

250kg

11/30/M8

–

30xM8

30

M8

39

45

10

26.8

26-27

350

11/30/M10

–

30xM10

30

M10

39

45

11

26.8

26-27

350

11/30/M12

–

30xM12

30

M12

39

45

13

26.8

26-27

350

11/30/M16

–

30xM16

30

M16

39

45

16.5

26.8

26-27

350

11/32/M8

1104M8

32xM8

32

M8

39

45

10

30

28-29

350kg

11/32/M10

1104

32xM10

32

M10

39

45

11

30

28-29

350kg

11/32/M12

1105

32xM12

32

M12

39

45

13

30

28-29

350kg

11/32/M16

1106

32xM16

32

M16

39

45

16.5

30

28-29

350kg

11/35/M10

–

35xM10

35

M10

39

45

11

32.2

31-32

400

11/35/M12

–

35xM12

35

M12

39

45

13

32.2

31-32

400

11/35/M16

–

35xM16

35

M16

39

45

16.5

32.2

31-32

400

11/38/M8

–

38xM8

38

M8

41

45

10

36

35-36

500kg

11/38/M10

1107M10

38xM10

38

M10

41

47

17.7

36

35-36

500kg

11/38/M12

1107

38xM12

38

M12

41

47

13

36

35-36

500kg

11/38/M16

1108

38xM16

38

M16

41

47

18

36

35-36

500kg

11/40/M10

–

40xM10

40

M10

39

45

11

36.8

36-37

500

11/40/M12

–

40xM12

40

M12

39

45

13

36.8

36-37

500

11/40/M16

–

40xM16

40

M16

39

45

16.5

36.8

36-37

500

11/51/M10

1109M10

51xM10

51

M10

39

45

11

48

47-48

750kg

11/51/M12

1110

51xM12

51

M12

39

45

13

48

47-48

750kg

11/51/M16

1109

51xM16

51

M16

39

45

18

48

47-48

750kg

11/51/M20

–

51xM20

51

M20

39

45

18

48

47-48

750kg

(G) is recommended ID tube sizes
