Ladder Aluminium: Allweld’s Folding Platform Ladder Range
- Description
- Additional information
Description

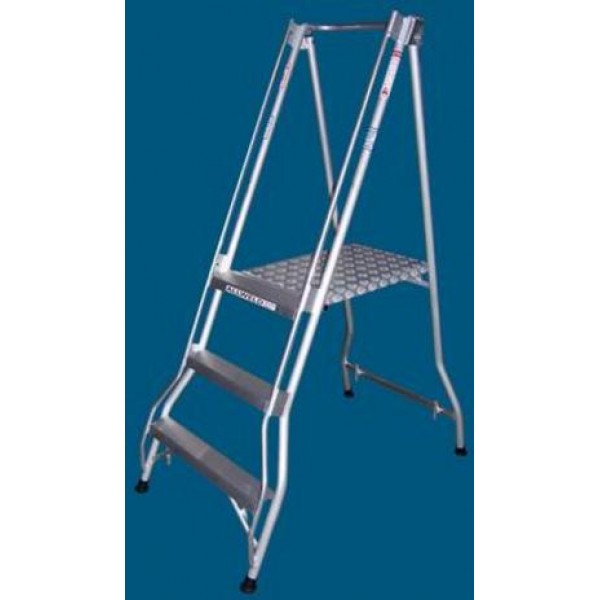

Platform Ladders
High class and built to last!
From the large reinforced checkerplate platform, to the smallest component on the ladder, all material in an Allweld platform ladder is high quality.
Platform ladders are fully welded for maximum strength from thick walled marine grade aluminium. The welding process is in accordance with AS/NZS 1665:2004. Design and construction is in accordance with AS/NZS 1892.1:1996 pt1.
The big 700mm x 400mm platform is formed from 2.5mm aluminium chequer-plate and load rated to 150kg, other features include an automatic locking spreader bar, wide non-slip steps, full length grab rails up each side and a wider than standard base for maximum stability.
Designed and built for a long working, maintenance free life
Designed and fabricated to an old fashioned philosophy where “products are built to last” Allweld customers enjoy a maintenance free, long life from their ladders. A true industrial grade ladder suited for the toughest workplaces. It is no surprise to see Allweld platform ladders located on mining sites and building sites all over the country.
Ladders
| Part Number | Steps | Platform Height (m) |
| FPS06 | 2 | 0.56 |
| FPS09 | 3 | 0.85 |
| FPS12 | 4 | 1.13 |
| FPS15 | 5 | 1.41 |
| FPS18 | 6 | 1.69 |
| FPS18WB | 6WB | 1.69 |
| FPS21 | 7 | 1.97 |
| FPS24 | 8 | 2.26 |
Castor Sets and Accessories
| Description | Type |
| FPS Castor Set (Spring) | Light (suit 2 – 6 step) |
| FPS Castor Set (Lever) | Heavy (suit 6WB, 7 – 8 step) |
| Loading Tray | |
| Extra Hand Rails | |
| Wall Mounting Bracket | |
| Safety Gate |
Additional information
| Load Capacity | 120kg or more |
|---|---|
| Ladder Type | Aluminium Ladders, Platform Ladders |
| Product Type | |
| Ladder Brand | Allweld |
| Platform Size | 700mm x 400mm |
| Ladder Size Metric | 0.6mt, 0.9mt |
